Abstract: An overview of the radio observations during June 2026 is given.



The graphs show both the daily totals (Figure 1) and the hourly numbers (Figure 2) of “all” reflections counted automatically, and of manually counted “overdense” reflections, overdense reflections longer than 10 seconds and longer than 1 minute, as observed here at Kampenhout (BE) on the frequency of our VVS-beacon (49.99 MHz) during the month of June 2026.

The hourly numbers, for echoes shorter than 1 minute, are weighted averages derived from:

Local interference and unidentified noise remained very limited, but severe lightning activity was recorded on 11 days. On 6 of these days, this also occurred in the immediate vicinity of the beacon, which made the automatic counting of meteors during those periods very difficult (Figure 3). The automatic counts of “all” meteors were therefore manually corrected for those periods. There were also numerous strong solar flares, mostly of type III, and occasionally type II.

The main highlights of the month were the daytime showers, primarily the Arietids, but smaller showers such as the zeta Perseids and others also made the month particularly interesting.

Over the course of the entire month, 9 reflections lasting longer than 1 minute were observed here. A selection of these, along with several other interesting reflections, is shown in Figures. 4 to 18. Many more are available upon request.

In addition to the usual graphs, you will also find the raw counts (subject to strict reservations as previously said) in cvs-format from which the graphs are derived. The table contains the following columns: day of the month, hour of the day, day + decimals, solar longitude (epoch J2000), counts of “all” reflections, overdense reflections, reflections longer than 10 seconds and reflections longer than 1 minute, the numbers being the observed reflections of the past hour.

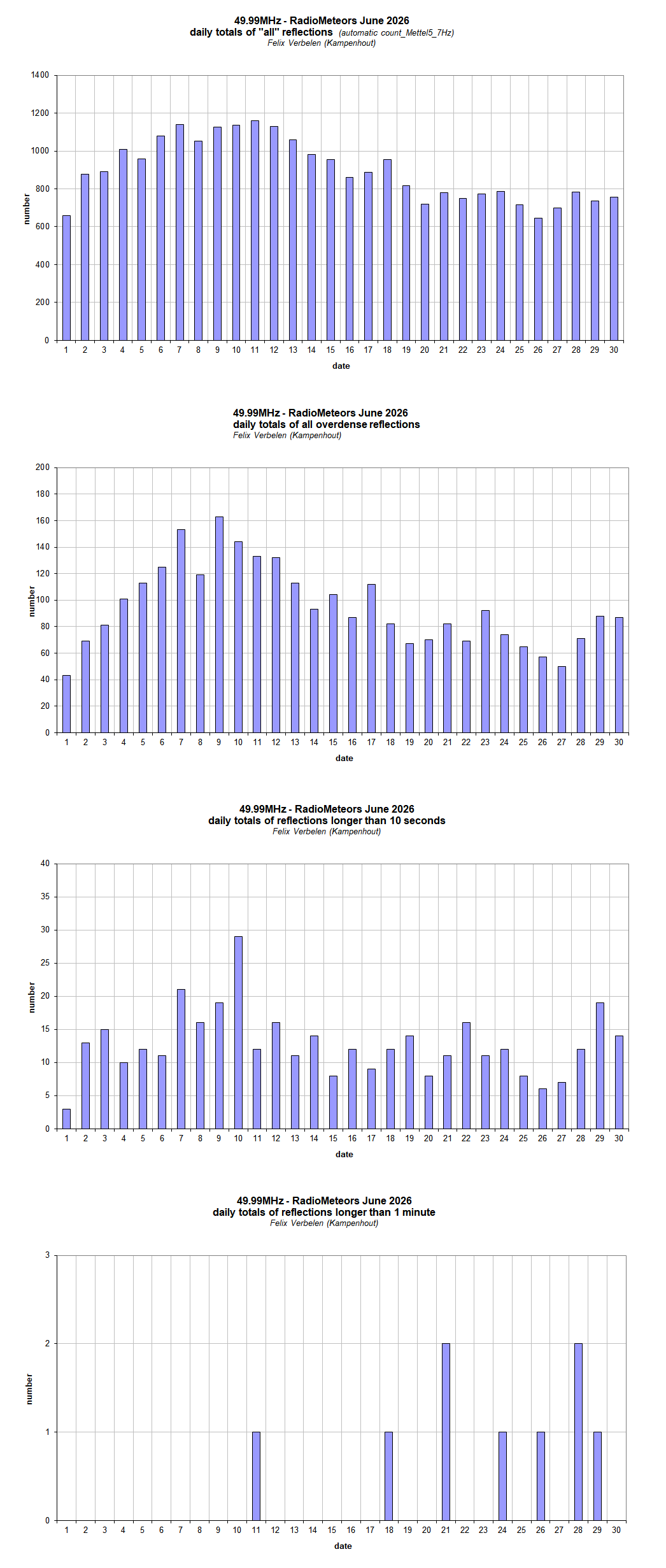

Figure 1 – The daily totals of “all” reflections counted automatically, and of manually counted “overdense” reflections, as observed here at Kampenhout (BE) on the frequency of our VVS-beacon (49.99 MHz) during  June 2026.

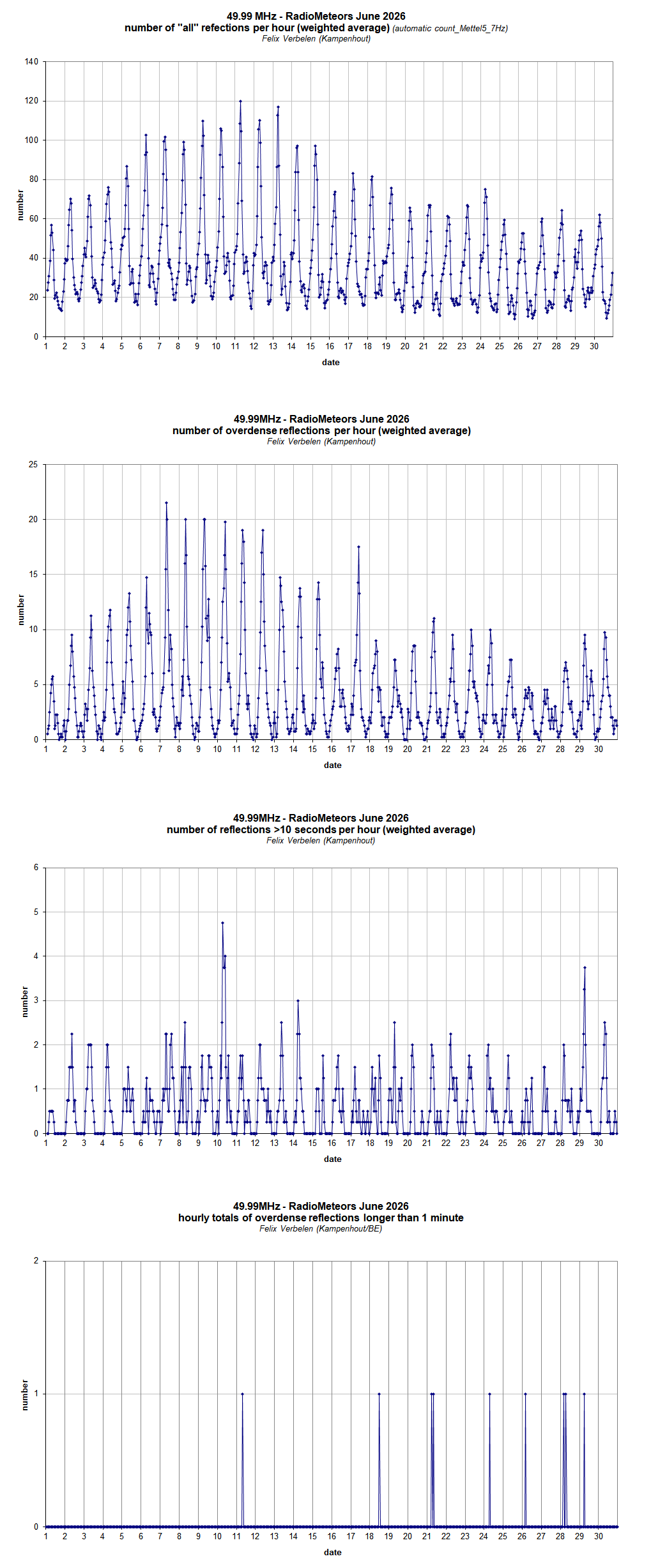

Figure 2 – The hourly numbers of “all” reflections counted automatically, and of manually counted “overdense” reflections, overdense reflections longer than 10 seconds and longer than 1 minute, as observed here at Kampenhout (BE) on the frequency of our VVS-beacon (49.99 MHz) during  June 2026.

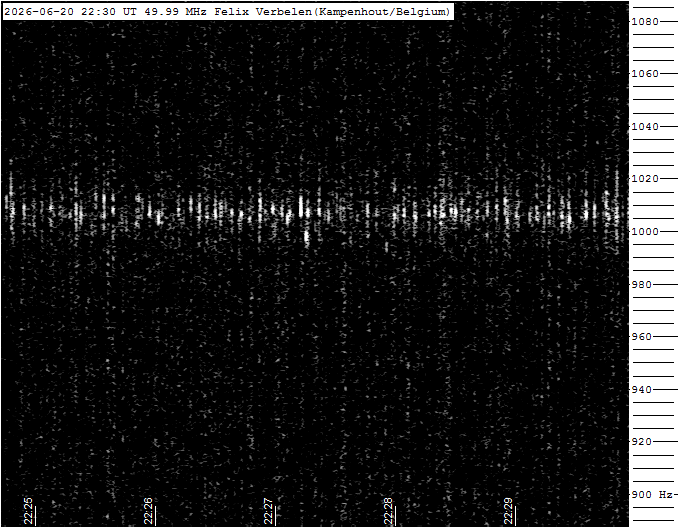

Figure 3 – Severe lightning activity occurred in the immediate vicinity of the beacon, which made the automatic counting of meteors during those periods very difficult.

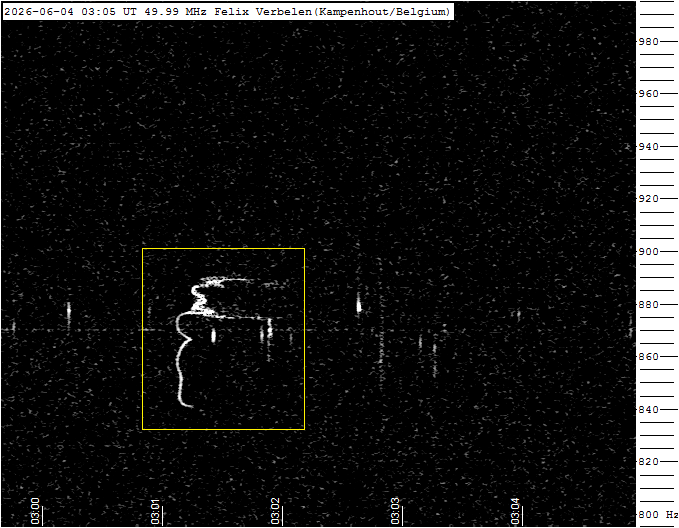

Figure 4 – Meteor echo June 4, 03h05m UT.

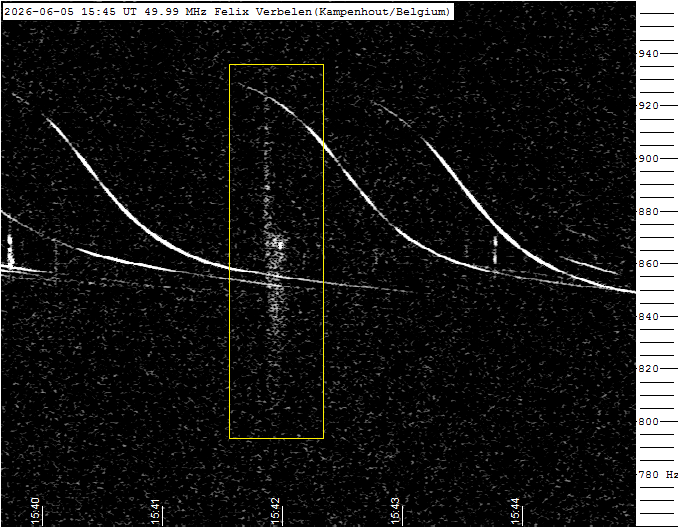

Figure 5 – Meteor echo June 5, 15h45m UT.

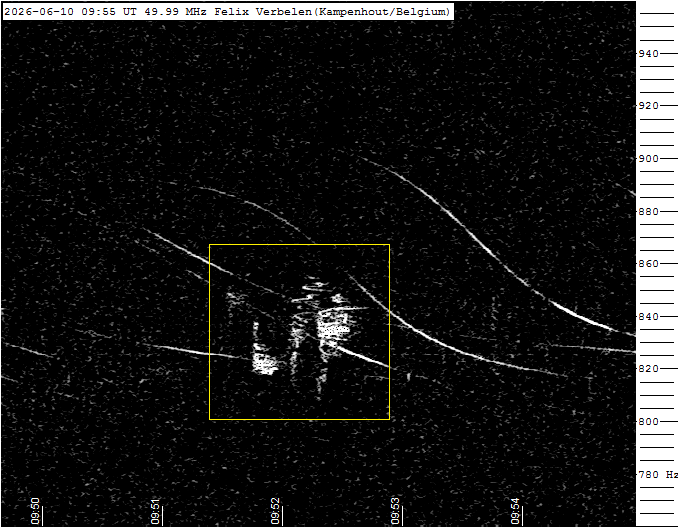

Figure 6 – Meteor echo June 10, 9h55m UT.

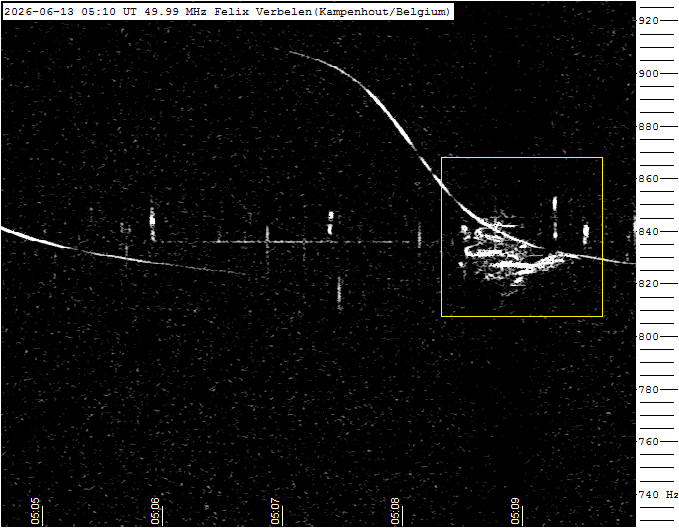

Figure 7 – Meteor echo June 13, 5h10m UT.

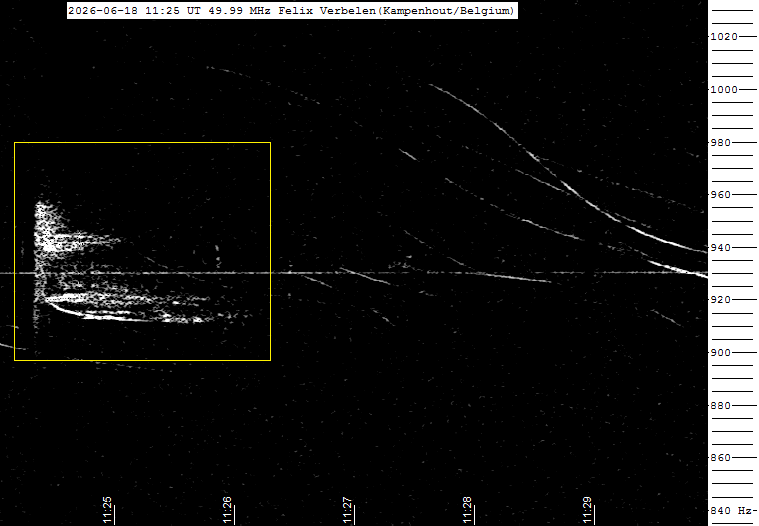

Figure 8 – Meteor echo June 18, 11h25m UT.

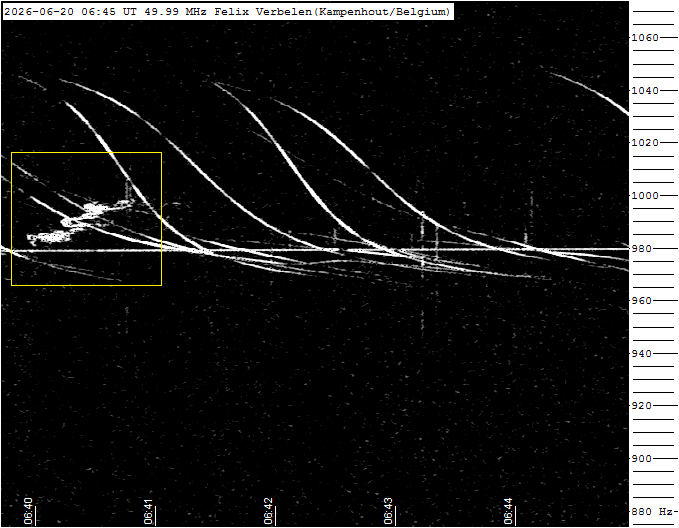

Figure 9 – Meteor echo June 20, 6h45m UT.

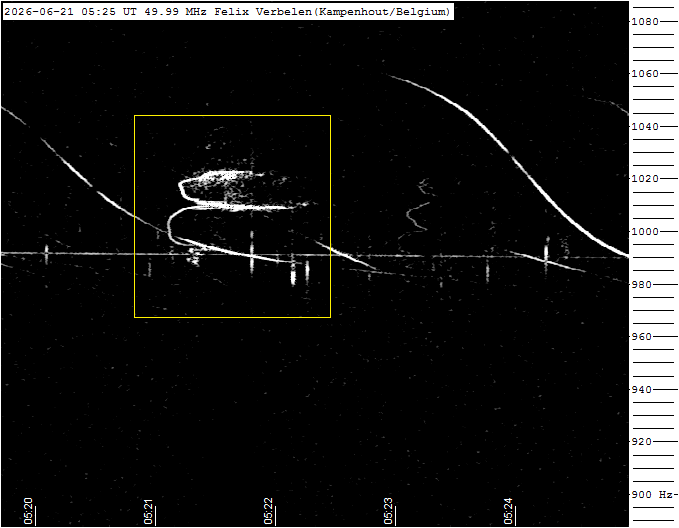

Figure 10 – Meteor echo June 21, 5h25m UT.

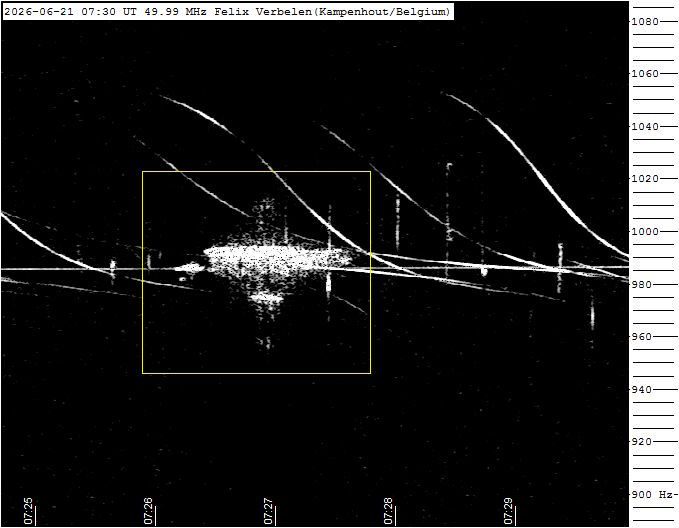

Figure 11 – Meteor echo June 21, 7h30m UT.

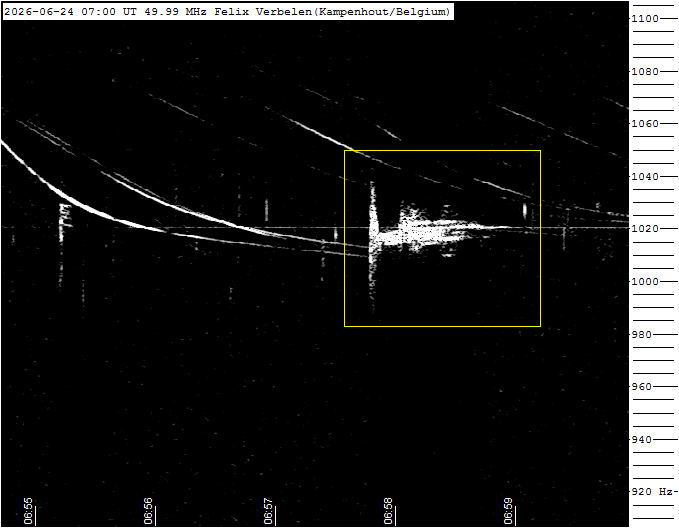

Figure 12 – Meteor echo June 24, 7h00m UT.

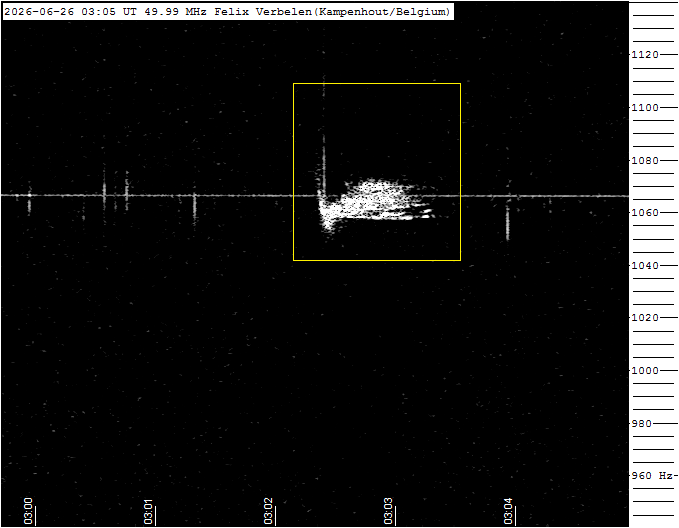

Figure 13 – Meteor echo June 26, 3h05m UT.

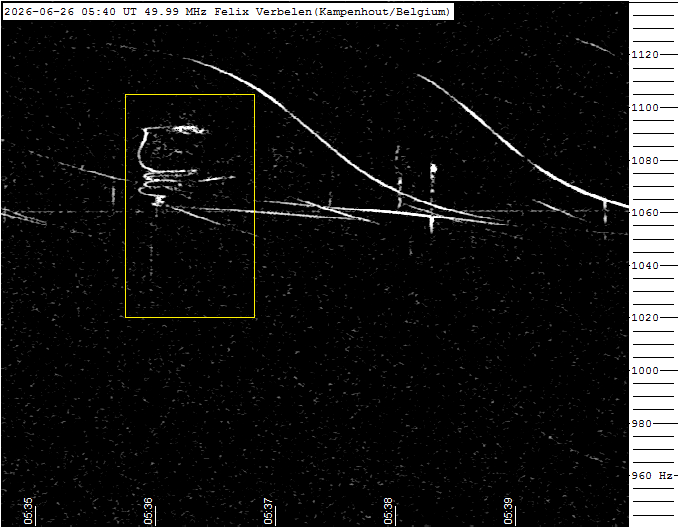

Figure 14 – Meteor echo June 26, 5h40m UT.

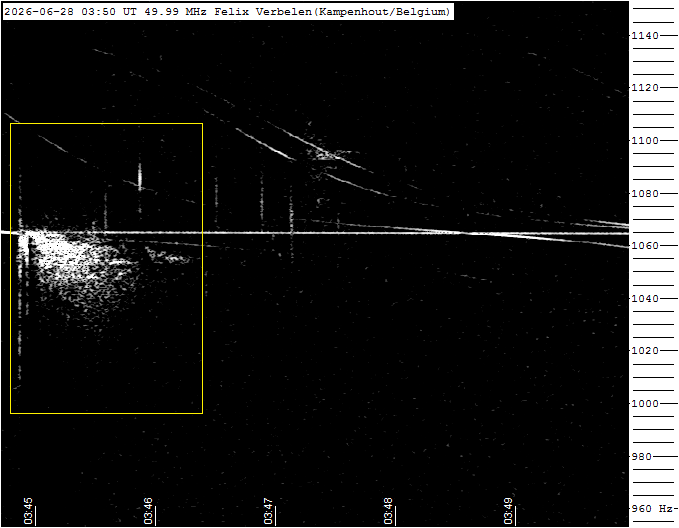

Figure 15 – Meteor echo June 28, 3h50m UT.

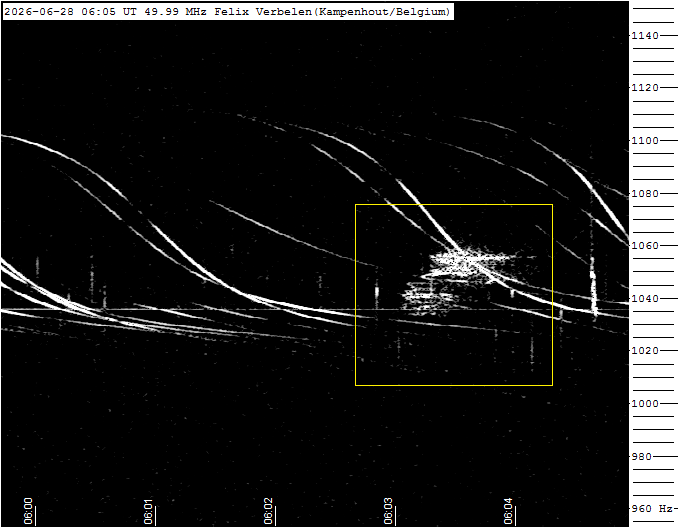

Figure 16 – Meteor echo June 28, 6h05m UT.

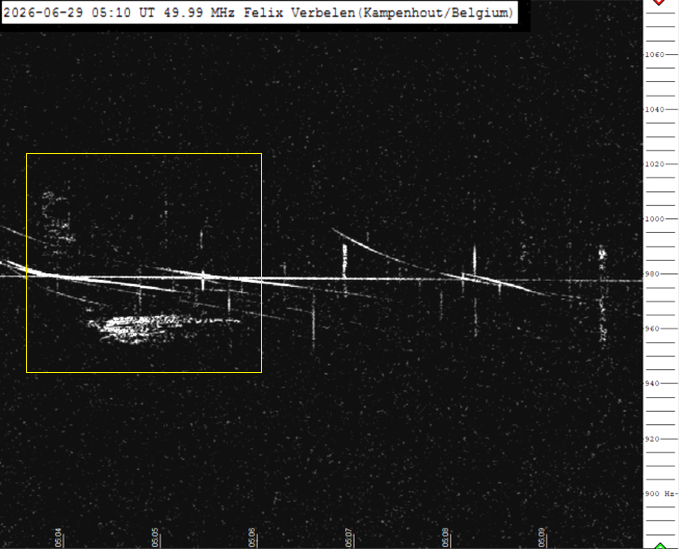

Figure 17 – Meteor echo June 29, 5h10m UT.

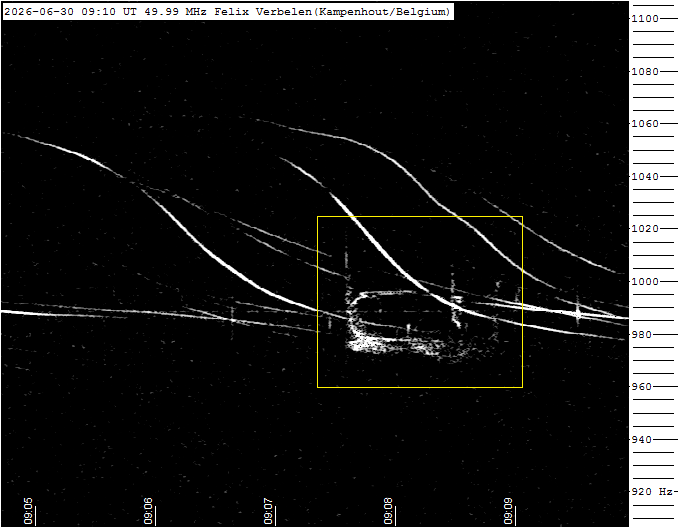

Figure 18 – Meteor echo June 30, 9h10m UT.
