An overview of the radio observations during October 2019 is given.



The graphs show both the daily totals (Figure 1) and the hourly numbers (Figure 2) of “all” reflections counted automatically, and of manually counted “overdense” reflections, overdense reflections longer than 10 seconds and longer than 1 minute, as observed here at Kampenhout (BE) on the frequency of our VVS-beacon (49.99 MHz) during the month of October 2019.

The hourly numbers, for echoes shorter than 1 minute, are weighted averages derived from:

N(h) = n(h-1)/4 + n(h)/2 + n(h+1)/4

During this month our registrations were quite often affected by moderate local interference and on 4 days by lightning activity, but no observed “sporadic E” (Es).
The automatic countings were manually corrected in order to eliminate the effects of the disturbances.

Some screen-dumps of a selection of eye-catching long duration reflections are displayed (Figures 3 to 15).

If you are interested in the actual figures, please send me an e-mail:  felix.verbelen at skynet.be.



Figure 1 – The daily totals of “all” reflections counted automatically, and of manually counted “overdense” reflections, overdense reflections longer than 10 seconds and longer than 1 minute, as observed here at Kampenhout (BE) on the frequency of our VVS-beacon (49.99 MHz) during October 2019.

Figure 2 – The hourly numbers of “all” reflections counted automatically, and of manually counted “overdense” reflections, overdense reflections longer than 10 seconds and longer than 1 minute, as observed here at Kampenhout (BE) on the frequency of our VVS-beacon (49.99 MHz) during October 2019.



Figure 3 – 2019 October 1 at 16h40m UT.



Figure 4 – 2019 October 11 at 10h45m UT.



Figure 5 – 2019 October 12 at 12h30m UT.



Figure 6 – 2019 October 15 at 01h20m UT.



Figure 7 – 2019 October 15 at 05h30m UT.



Figure 8 – 2019 October 16 at 06h15m UT.



Figure 9 – 2019 October 17 at 07h55m UT.



Figure 10 – 2019 October 17 at 08h35m UT.



Figure 11 – 2019 October 17 at 12h10m UT.

Figure 12 – 2019 October 18 at 05h40m UT.

Figure 13 – 2019 October 20 at 06h20m UT.



Figure 14 – 2019 October 24 at 03h00m UT.

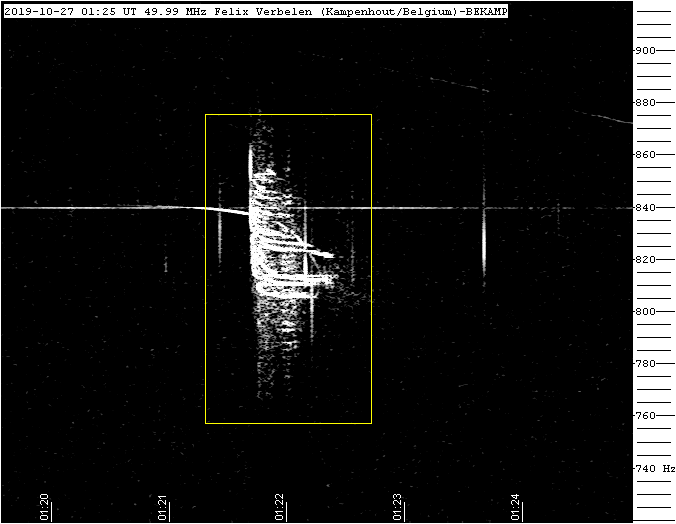

Figure 15 – 2019 October 27 at 01h25m UT.
